ANSI/AWWA C153/C110

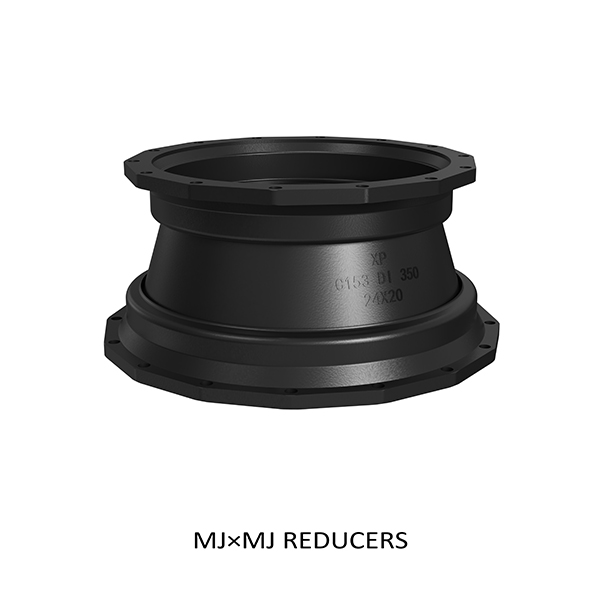

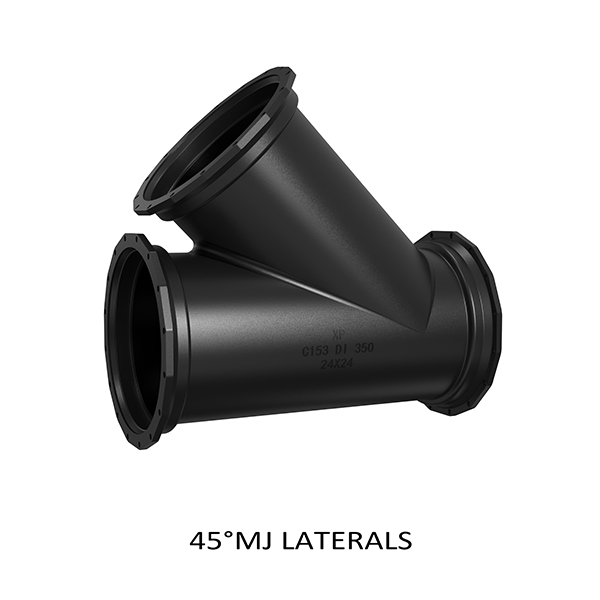

DUCTILE IRON MECHANICAL JOINT COMPACT FITTINGS ANSI/AWWA C153/A21.53

GENERAL SPECIFICATIONS

MATERIALS: Ductile Iron per ASTM A536.

PRESSURE: 350 PSI rating for 2” – 24” sizes, 250 PSI rating for 30” – 48” sizes, and 150 PSI rating for 54” – 64”sizes.

TESTING: In accordance with ANSI/AWWA C153/A21.53, ANSI/AWWA C111/A21.11, UL and FM requirements.

LAYING LENGTH: In accordance with ANSI/AWWA C153/A21.53.

DEFLECTION: 2” – 4” = 8° | 6” = 7° | 8” – 12” = 5° | 14” – 16” = 3½° | 18” – 24” = 3° | 30” – 48” = 2°.

FLANGES: Flanged ends on fittings match ANSI/AWWA C115/A21.15 and ANSI B16.1 class 125 flanges.

CEMENT LINING: In accordance with ANSI/AWWA C104/A21.4 –– sizes 2” – 3” single thickness and sizes 4” – 64” double thickness

COATING: Asphaltic seal coat inside and outside in accordance with ANSI/AWWA C104/A21.4 and referenced in ANSI/AWWA C153/A21.53.

WEIGHT: In kilograms, not include accessories, cement lining and coating.

DIMENSION: All dimensions are in inches unless noted otherwise.

INSTALLATION: Per ANSI/AWWA C600 and C111 using DIP conforming to C150/C151 and PVC pipe conforming to C900/C905.

NOTE - Fittings & Dimnsions Available On Request

NOTE - Fittings are available in bare, or finished condition upon request.

NOTE - All coated and lined fittings meet requirements of NSF-61.

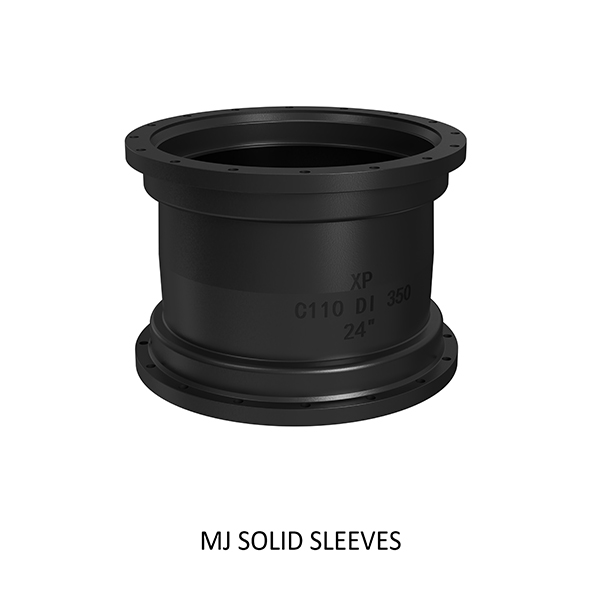

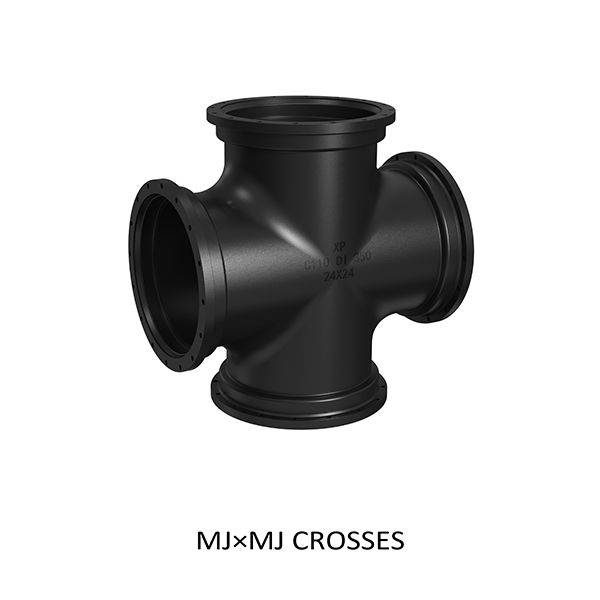

DUCTILE IRON MECHANICAL JOINT FULL BODY FITTINGS ANSI/AWWA C110/A21.10

GENERAL SPECIFICATIONS

MATERIALS: Ductile Iron per ASTM A536.

PRESSURE: 350 PSI rating for 2” – 24” sizes, 250 PSI rating for 30” – 48” sizes.

TESTING: In accordance with ANSI/AWWA C110/A21.10 and UL – FM requirements.

LAYING LENGTH: In accordance with ANSI/AWWA C110/A21.10.

DEFLECTION: 2” – 4” = 8° | 6” = 7° | 8” – 12” = 5° | 14” – 16” = 3½° | 18” – 24” = 3° | 30” – 48” = 2°.

FLANGES: Flanged ends on fittings match ANSI/AWWA C110/A21.10 and ANSI B16.1 class 125 flanges.

CEMENT LINING: In accordance with ANSI/AWWA C104/A21.4 –– sizes 2” – 3” single thickness and sizes 4” – 48” double thickness

COATING: Asphaltic seal coat inside and outside in accordance with ANSI/AWWA C104/A21.4 and referenced in ANSI/AWWA C110/A21.10.

WEIGHT: In kilograms, not include accessories, cement lining and coating.

DIMENSION: All dimensions are in inches unless noted otherwise.

INSTALLATION: Per ANSI/AWWA C600 and C111 using DIP conforming to C150/C151 and PVC pipe conforming to C900/C905.

NOTE - Fittings & Dimnsions Available On Request

NOTE - Fittings are available in bare, or finished condition upon request.

NOTE - All coated and lined fittings meet requirements of NSF-61.

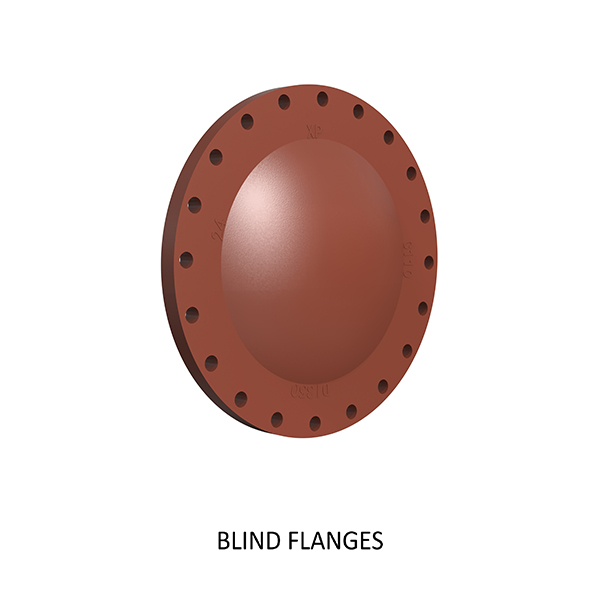

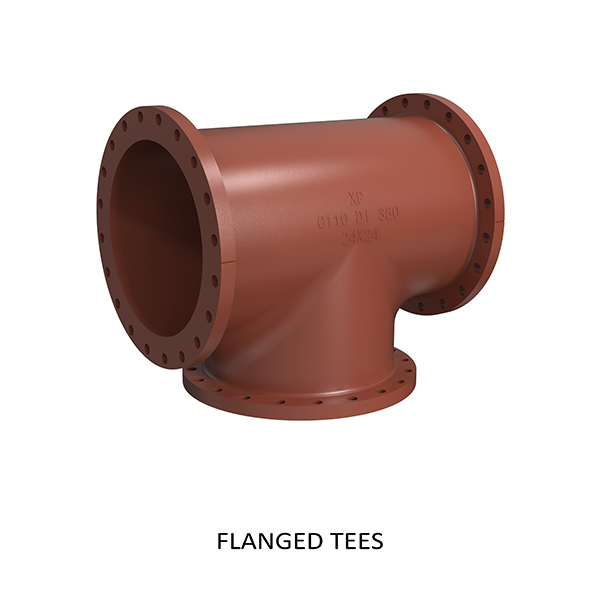

DUCTILE IRON FLANGED FITTINGS

ANSI/AWWA C110/A21.10 (2” thru 48”)

ANSI/AWWA C153/A21.53 (54” thru 64”)

GENERAL SPECIFICATIONS

MATERIALS: Ductile Iron per ASTM A536.

PRESSURE: 250 PSI rating for 2” – 48” sizes and 150 PSI rating for 54” – 64”sizes.

TESTING: In accordance with ANSI/AWWA C110/A21.10 and UL – FM requirements.

LAYING LENGTH: 2” – 48” sizes in accordance with ANSI/AWWA C110/A21.10 | ANSI B16.1 and 54” – 64” sizes in accordance with ANSI/AWWA C153/A21.53.

DRILLING: In accordance with ANSI/AWWA C110/A21.10, ANSI/AWWA C153/A21.53, and ANSI B16.1 Class 125 Flanges.

CEMENT LINING: In accordance with ANSI/AWWA C104/A21.4 –– sizes 2” – 3” single thickness and sizes 4” – 64” double thickness.

COATING: Asphaltic seal coat inside in accordance with ANSI/AWWA C104/A21.4 | NSF-61 approved and Prime coat outside.

WEIGHT: In kilograms, not include accessories, cement lining and coating.

DIMENSION: All dimensions are in inches unless noted otherwise.

INSTALLATION: Per ANSI/AWWA C600 and C111 using DIP conforming to C150/C151 and PVC pipe conforming to C900/C905.

NOTE - Fittings & Dimnsions Available On Request

NOTE - Fittings are available in bare, or finished condition upon request.

NOTE - All coated and lined fittings meet requirements of NSF-61.
