ГОСТ 5525-88

Conforming Standards:

ГОСТ 5525-88

Size Range:

80mm-1400mm(Fittings & Dimnsions Available On Request)

Joints:

Push-On Joint (TJ)

The push-on joints are most jointing system with high reliability. Push-on joints are assembled with synthetic rubber gaskets which gets compressed when the spigot is inserted into the socket. The joints become tighter with the increase in internal pressure of water. It is an easy to join system which allows rapid low-cost laying even in wet condition.

Flange Joint (FJ)

In any pipeline system there are certain lengths, which are exposed and are not buried under the earth. These lengths need to be tied down to pillars to avoid movements. For this kind of application, flanged joints are used. Flanged joints are also used for vertical pipelines and inter connection of utilities.

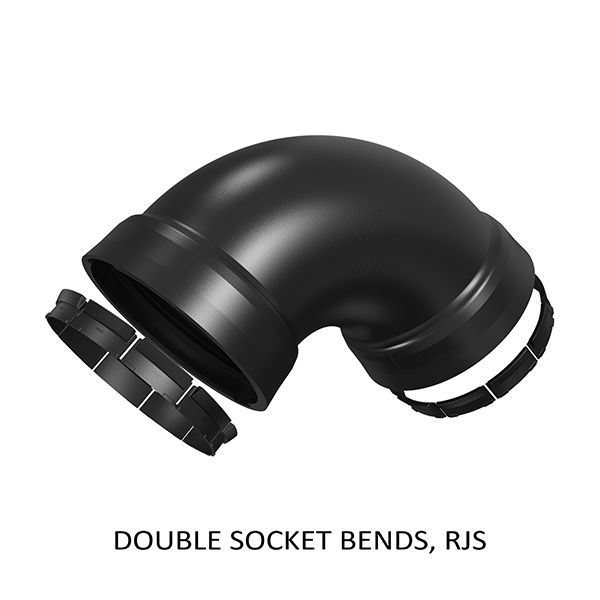

Restrained Joint (RJ)

Restrained joints are special joints, which can take care of axial thrust. Flexible restrained joints are also used in high slope or where horizontal/vertical ground movement is anticipated. These joints are necessary on fittings and a few pipes adjacent to the fittings. Restrained joints eliminate use of concrete anchor blocks, which are costly and delay the progress of laying.

Type of Linings:

Ordinary Portland Cement (OPC)

High Alumina Cement (HAC)

Sulfate Resistant Cement (SRC)

Blue/Black/Red Epoxy Seal Coat

Type of Coatings:

Rich Zn & Zn-Al Coatings as per International Standard

Finishing Layer:

Blue/Black/Red Epoxy or Black Bitumen

Anti-Corrosion Coating:

The both internal and external Fusion Bonded Epoxy (FBE) coating is an anti-corrosion coating.  This coating ensures that the fittings are tough and durable, especially in sour conditions.
